Click on the picture below to see a higher resolution image.

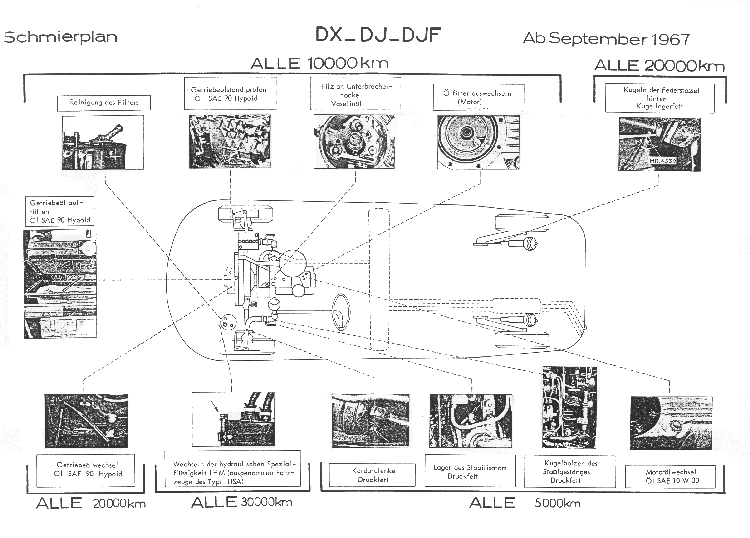

| Below is a Citroën lubrification chart for
a DS 21 or Break 21 valid from september 1967.
Click on the picture below to see a higher resolution image.
|
|
English translation :
| Clean filter | Check gearbox oil
level SAE 90 hypoid oil |
Felt on distributor
cam Vaseline oil |
Change engine oil filter | Ball joint rear
suspension cylinder Ball bearing grease |
|
| Top up gearbox oil SAE 90 hypoid oil |
|||||
| Change gearbox oil SAE 90 hypoid oil |
Change oil of
hydraulic system LHM |
Drive shaft joint Grease |
Anti rollbar
bearing Grease |
Ball joints of anti
roll bar connecting rods Grease |
Change engine oil SAE 10 W 30 oil |
